Feature:
Large travel size and heavy vertical cutter head with adjustable angle
Machine frame with extra rigid design, wide knee slide and large travel sizes
Guideways and gears are hardened and ground
Large setup table features a hardened surface and is perfectly suited for clamping large workpieces
Extremely rigid cutter head swivels ± 30°
Manual quill feed for micro-feeds during milling and drilling, even with tilted cutter head
High-torque servo motors with infinitely variable feeds and rapid feeds on all 3 axes
Standard equipment includes digital 3-axis position indicator, large chip tray, and coolant sytem to ensure long tool life and excellent workpiece surface quality

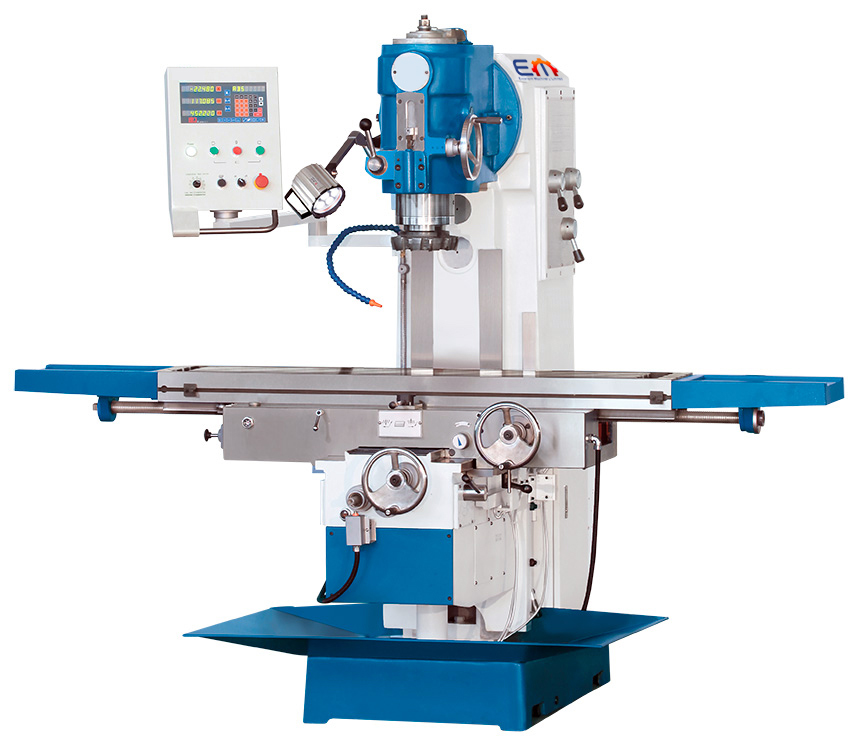

| VFM 5 – Vertical Milling Machine | |
| working area | |
| travel X-axis | 1300 mm |
| travel Y-axis | 290 mm |
| travel Z-axis | 450 mm |
| table set up area | 320×1600 mm |
| number of T-slots | 3 Pieces |
| T-slots, width | 18 mm |
| T-slots, spacing | 70 mm |
| table load capacity (max.) | 300 kg |
| feed | |
| rapid feed X-axis | 1200 mm/min |
| rapid feed Y-axis | 800 mm/min |
| rapid feed Z-axis | 600 mm/min |
| feed speed X-axis | 30 – 750 mm/min |
| feed speed Y-axis | 20 – 500 mm/min |
| feed speed Z-axis | 15 – 375 mm/min |
| Milling Head | |
| speed range | (12) 50 – 1475 rpm |
| spindle mount | 7:24 ISO 50 |
| head swivel range | ± 30° |
| quill stroke | 70 mm |
| spindle nose-to-table surface distance | 50 – 500 mm |
| throat | 378 mm |
| drive capacity | |
| motor rating main drive | 5,5 kW |
| motor rating X axis feed | 1,5 kW |
| motor rating Y axis feed | 1,5 kW |
| motor rating Z axis feed | 1,5 kW |
| motor rating coolant pump | 0,09 kW |
| supply voltage | 400 V |
| measures and weights | |
| overall dimensions | 2520x2100x2150 mm |
| weight | 2350 kg |
,
