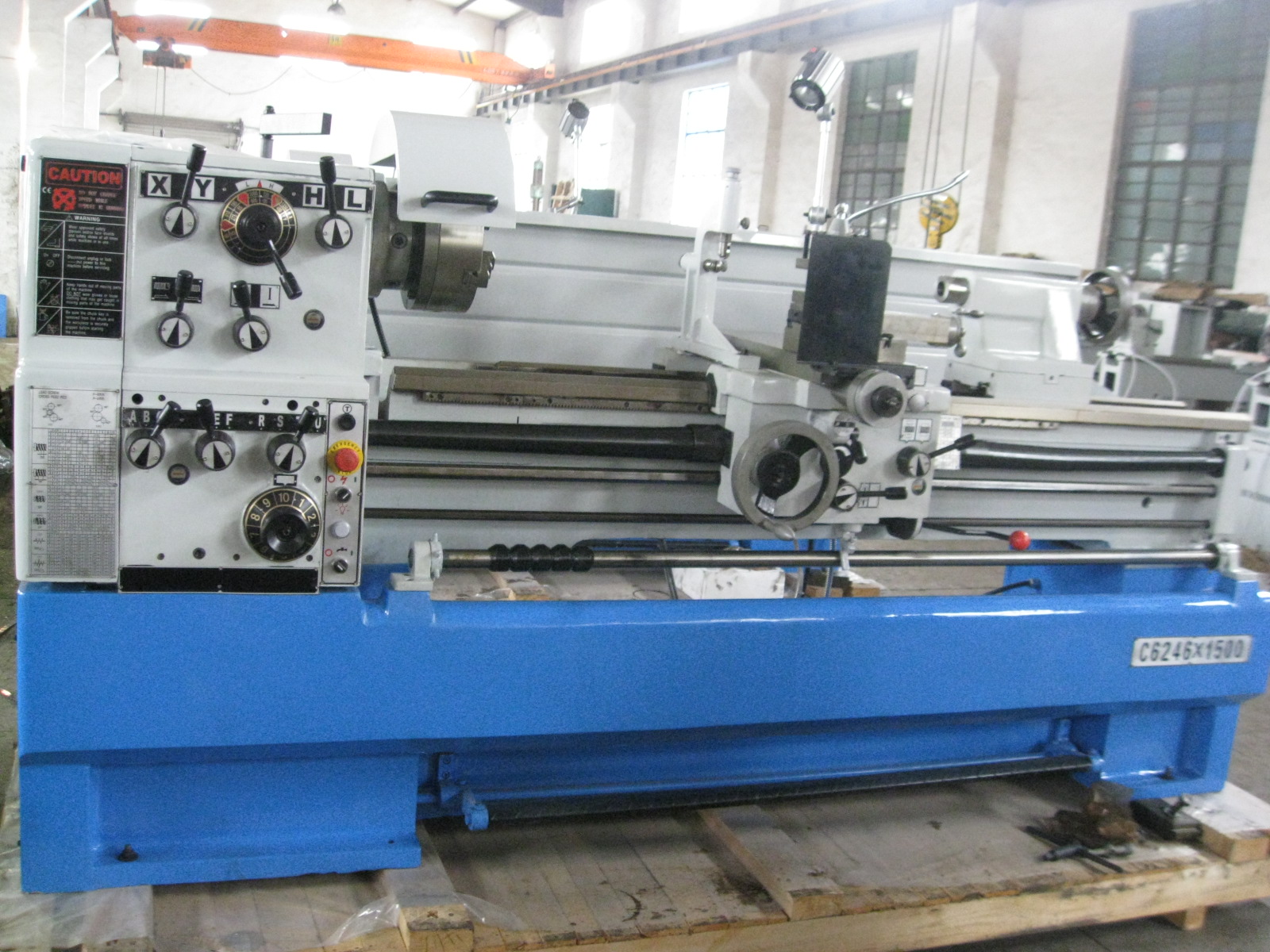

Model | C6241D × 1000 | C6241D × 1500 | C6246D × 1000 | C6246D × 1500 |
Swing over bed | Φ 410mm （ 16″ ） | Φ 460mm(18″) | ||
Swing over cross slide | Φ 224mm(8 13/16″) | Φ 274mm(10 3/4″) | ||
Swing in gap(D × W) | 640mm × 218mm | 690mm × 218mm | ||
Height of center | 205mm(8 5/64″) | 230mm(9 1/16″) | ||
Distance between centers | 1015mm/1515mm | 1015mm/1515mm | ||
Width of bed | 300mm(11 3/4″) | 300mm(11 3/4″) | ||
Max. section of cutting tool | 25mm × 25mm(1″ × 1″) | 25mm × 25mm(1″ × 1″) | ||
Total travel of cross slide | 290mm(11 3/8″) | 290mm(11 3/8″) | ||
Total travel of top slide | 120mm(4 3/4″) | 120mm(4 3/4″) | ||
Spindle bore | Φ 82mm(3 1/4″) | Φ 82mm(3 1/4″) | ||
Spindle nose | D1-8 | D1-8 | ||
Spindle morse taper in nose,in sleeve | ME90/M.T.#5 | ME90/M.T.#5 | ||
Spindle speeds number | 12 | 12 | ||
Spindle speeds range | 25-2000 R.P.M | 25-2000 R.P.M | ||
Leadscrew diameter&thread | 35mm(1 3/8″) × 4 T.P.I or pitch 6mm | 35mm(1 3/8″) × 4 T.P.I or pitch 6mm | ||
Threads imperial pithches | 4-112(50 NOS) | 4-112(50 NOS) | ||
Threads metric pithches | 0.25-7(24 NOS) | 0.25-7(24 NOS) | ||
Diametral pitches DP/DP | 4-112(50 NOS) | 4-112(50 NOS) | ||
Diametral pitches MP/MP | 0.25-14(34 NOS) | 0.25-14(34 NOS) | ||
Longitudinal feeds(imperial/metric) | 0.0011″-0.0316″(50Nos)/0.01mm-0.286mm(50Nos) | 0.0011″-0.0316″(50Nos)/0.01mm-0.286mm(50Nos) | ||
Cross feeds(imperial/metric) | 0.00024″-0.0068″(50Nos)/0.01mm-0.286mm(50Nos) | 0.00024″-0.0068″(50Nos)/0.01mm-0.286mm(50Nos) | ||
Total travel of tailstock quill | 120mm(4 3/4″) | 120mm(4 3/4″) | ||
Tails stock quill | Φ 60mm(2 3/8″) | Φ 60mm(2 3/8″) | ||
Taper tailstock quill | M.T.#4 | M.T.#4 | ||
Spindle drive motor | 7.33HP(5.5KW) | 7.33HP(5.5KW) | ||
Coolant pump motor | 4/75HP(0.04KW) | 4/75HP(0.04KW) | ||
Machine dimension | 88″ × 36″ × 49″/110″ × 36″ × 49″ | 88″ × 36″ × 51″/110″ × 36″ × 51″ | ||
Packing dimension | 93″ × 39″ × 62″/114″ × 39″ × 62″ | 93″ × 39″ × 64″/114″ × 39″ × 64″ | ||
N.W | 1680KG/2010KG | 1730KG/2060KG | ||
G.W | 1930KG/2260KG | 1980KG/2310KG | ||
,
