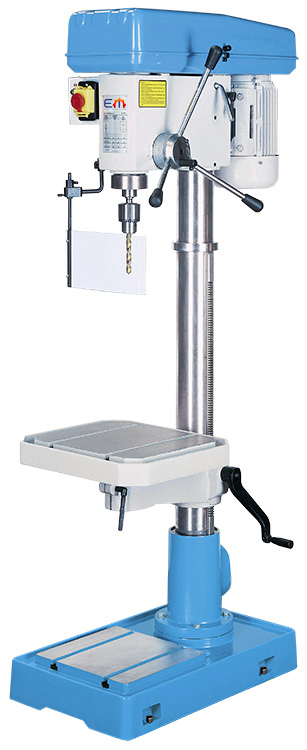

Rigid column drill press with large work tables
automatic feed
coolant system
belt drive for low-noise operation, low-maintenance and robust design
precision spindle bearing – long life and high accuracy
table movement via hand-crank and gear rack
adjustable depth stop at the capstan handle
long quill stroke with precision guide
thick-walled column for maximum rigidity during machining of large parts
| KSS 25V – Industrial Drill Press | |
| drilling capacity | 25 mm |
| working area | |
| table set up area | 330×380 mm |
| quill stroke | 130 mm |
| foot set up area (length x width) | 330×320 mm |
| spindle axis-to-table surface distance | 680 mm |
| spindle nose-to-foot distance | 965 mm |
| throat | 230 mm |
| column diameter | 102 mm |
| headstock | |
| spindle speed | (6) 230 – 2160 rpm |
| spindle mount | MK 3 / MT 3 |
| feed | |
| quill feeds | (3) 0,10; 0,16; 0,25 mm/R |
| drive capacity | |
| motor rating main drive | 1,5 kW |
| supply voltage | 400 V |
| measures and weights | |
| height | 1580 mm |
| weight | 190 kg |
,
,
