Feature:
Superior Rigidity for Demanding Drilling, Reaming and Thread-Cutting Tasks
box-column design provides high load capacity, and is torsion-proof and rigid
table and drill head can be moved individually for an optimum machining height
9-step feed and speed gears, with oil-bath lubrication
high torque across the entire speed range
thread-cutting unit automatically reverses upon reaching the preset depth

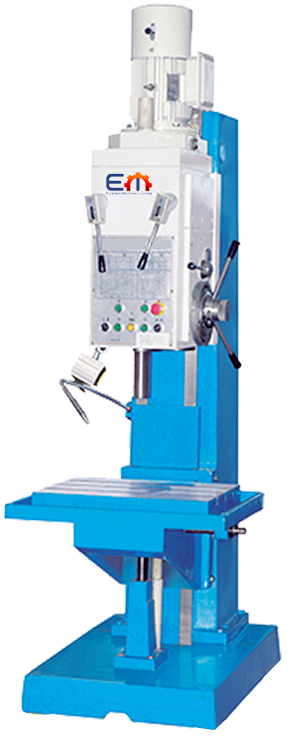

| KSB 32A – Box-Column Drill Press | |
| drilling capacity | 32 mm |
| working area | |
| table set up area | 400×550 mm |
| T-slots, width | 14 mm |
| number of T-slots | 3 Pieces |
| quill stroke | 200 mm |
| table stroke | 300 mm |
| Vorschub Z-Achse | (9) 0,056 – 1,8 mm/R |
| feed force, axial (max.) | 9 kN |
| spindle nose-to-table distance (max.) | 690 mm |
| throat | 280 mm |
| vertical head travel | 200 mm |
| headstock | |
| spindle speed | (9) 50 – 2000 rpm |
| headstock torque | 160 Nm |
| spindle taper | MT 4 |
| drive capacity | |
| motor rating main drive | 2,2 kW |
| motor rating coolant pump | 0,09 kW |
| measures and weights | |
| Fördermenge | 25 l/min |
| overall dimensions | 962x847x2340 mm |
| weight | 950 kg |
,
