Feature:
For drilling, milling, tapping, reaming
For universal use in mechanical engineering, training and constr.
machine head runs in sturdy dovetail guide
motorized machine head positioning
automatic quill feed (3 steps)
manual quill feed for boring and micro-feed
multi-step gear for maximum drilling and milling capacity
large compound sliding table on rigid guideways
automatic table feed, X and Y axis

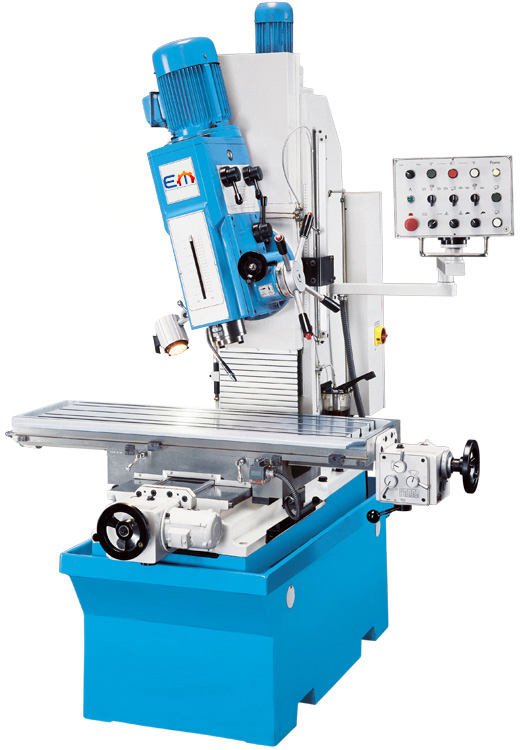

| KBF 50 – Drill Press / Milling Machine | |
| working area | |
| travel X-axis | 600 mm |
| travel Y-axis | 360 mm |
| table set up area | 1220×360 mm |
| drilling capacity | 50 mm |
| number of T-slots | 3 Pieces |
| T-slots, width | 14 mm |
| T-slots, spacing | 95 mm |
| feed | |
| automatic spindle feeds | 0,1; 0,15; 0,3 mm/R |
| table feed automatic | (8) 24 – 720 mm/min |
| vertical milling head | |
| speed range | (16) 94 – 2256 rpm |
| spindle mount (vertical) | SK 40 |
| quill stroke | 180 mm |
| Abstand Spindelnase – Tisch | 120 – 620 mm |
| drive capacity | |
| motor rating main drive | 2,4 kW |
| main drive, continuous load | 1,5 kW |
| supply voltage | 400 V |
| measures and weights | |
| overall dimensions | 1730x1730x2300 mm |
| weight | 1400 kg |
,
