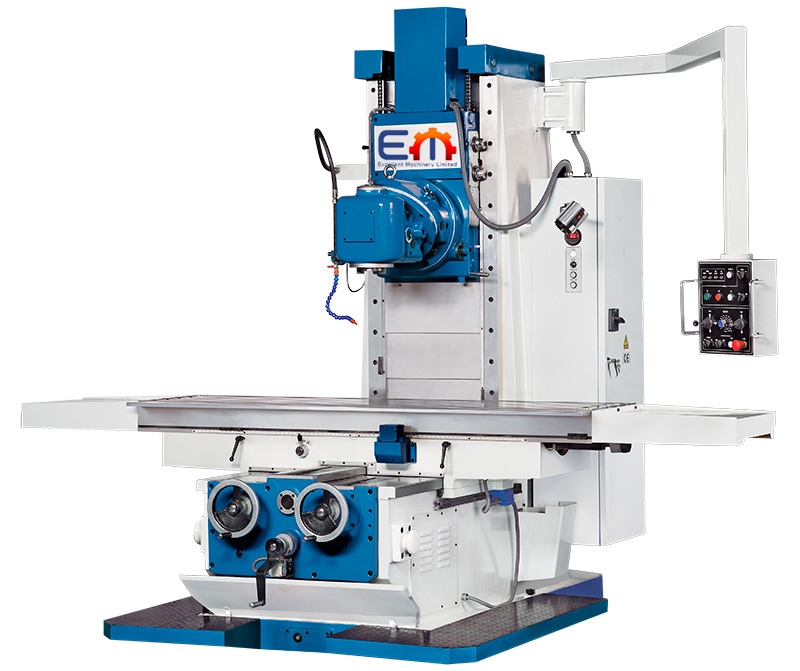

KB 2100 - Bed-Type Milling Machine

Feature:

Large machine bed, wide column,
plus high intrinsic weight – Power package for machining of large parts and heavy-duty chip removal capacity

an extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results
extra long table travel distance (1500 mm) and large table set-up area (2100 x 500 mm) allow machining of large single parts or interactive machining of several parts – to give you a leading edge over your competition
wide spindle speed range from 40 to 1600 rpm
extra wide guideways ensure maximum stability and precision at high loads
infinitely variable linear and cross feed
control panel on a long extending arm that can be ideally positioned by the operator
This universal cutter head features maximum rigidity and quiet operation. The angle can be set manually on an infinitely adjustable scale from 90º to 45º. This allows an exact adjustment of the headstock in user-defined spatial angles and easy movement to a horizontal position.
The KB 2100 includes a horizontal cutter arbor holder with excellent rigidity, allowing the user to fully utilize the advantages of a bed-type milling machine design for machining with long cutter arbors.

KB 2100 – Bed-Type Milling Machine
working area
travel X-axis1500 mm
travel Y-axis670 mm
travel Z-axis0 – 700 mm
table set up area2100×500 mm
table load capacity (max.)2000 kg
number of T-slots4 Pieces
T-slots, spacing20 mm
feed
rapid feed X-axis3500 mm/min
rapid feed Y-axis3500 mm/min
rapid feed Z-axis1750 mm/min
feed speed X-axis (infinitely variable)20 – 1800 mm/min
feed speed Y-axis (infinitely variable)20 – 1800 mm/min
vertical milling head
spindle speed (vertical)(12) 40 – 1600 rpm
spindle mount (vertical)ISO 50
throat610 mm
vertical spindle-to-table surface distance0 – 700 mm
milling head swivel range360 °
drive capacity
motor rating main drive7,5 kW
motor rating feed2 kW
motor rating coolant pump0,55 kW
measures and weights
overall dimensions3300x2380x2750 mm
weight7300 kg

,
