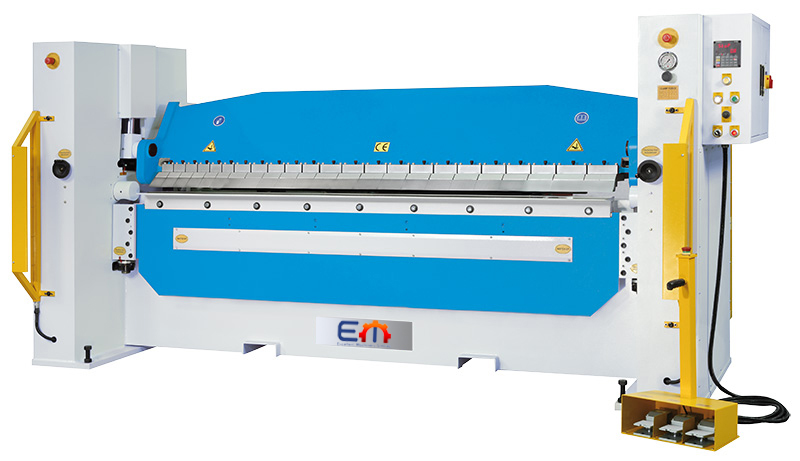

rigid machine frame and powerful hydraulics ensure superior production quality, accuracy and reliability
design and equipment allow high machining speed with short tooling time and minimum down time
powerful drives feature with up to 7.5 kW, low-maintenance hydraulics
hydraulic upper die adjustment with clamping pressure control and display at the control panel
fine adjustment of the clamping gap to avoid damages to the workpiece surface
lower beam with manual adjustment and crowning
manually adjustable rear stop (600 mm), and angular positioning control M15S with LED-Display are standard equipment
bending angles up to 135°
segmented upper die with segment divisions of 76 mm (7 each), 102 mm (3 each), 127 mm (7 each) and 152 mm (2 each)
flexible operation with mobile triple foot switch
| Hydraulic Folding Machines | HBM 2045 | HBM 2065 | HBM 2545 | HBM 2565 | HBM 3145 | HBM 3165 |
| working area | ||||||
| working length | 2035 mm | 2035 mm | 2540 mm | 2540 mm | 3100 mm | 3100 mm |
| bending capacity, structural steel | 4,5 mm | 6,5 mm | 4,5 mm | 6,5 mm | 4,5 mm | 6,5 mm |
| bending capaicty, stainless steel | 3 mm | 4,5 mm | 3 mm | 4,5 mm | 3 mm | 4,5 mm |
| bending bar angle (range) | 0 – 135 ° | 0 – 135 ° | 0 – 135 ° | 0 – 135 ° | 0 – 135 ° | 0 – 135 ° |
| top beam travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| adj. lower bending beam | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| drive capacity | ||||||
| motor rating main drive | 7,5 kW | 10 kW | 7,5 kW | 10 kW | 7,5 kW | 10 kW |
| measures and weights | ||||||
| hydraulic tank volume | 130 l | 130 l | 150 l | 230 l | 150 l | 300 l |
| overall dimensions | 3300x1550x1900 mm | 3300x1550x1900 mm | 3900x1700x1900 mm | 3900x1750x2050 mm | 4500x1750x1950 mm | 4500x1750x2050 mm |
| weight | 3200 kg | 3710 kg | 5100 kg | 6200 kg | 5500 kg | 7100 kg |
,
