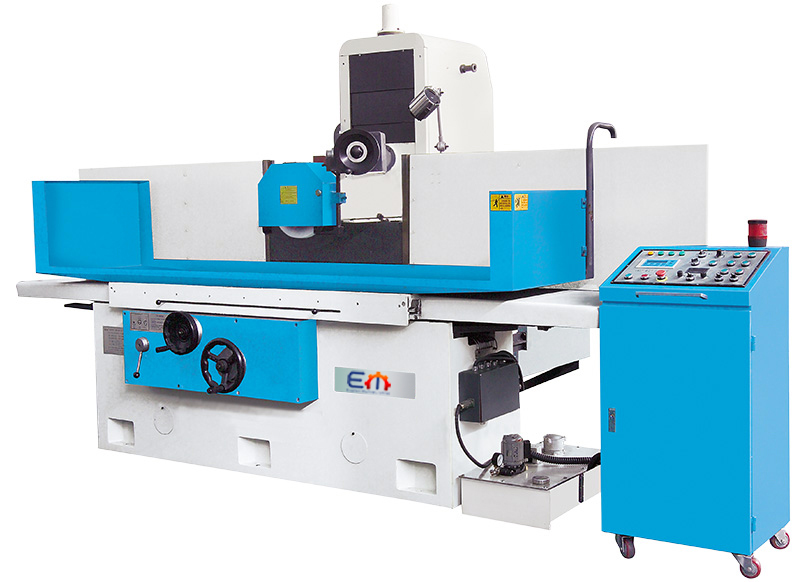

Hydraulic column moving Surface Grinder

Request a Quote

Feature:

Spindle runs in preloaded angular ball bearings and features a high load capacity

X and Y axis guide ways are coated with TF wearable material

Separate hydraulic unit with oil cooling system

X axis with high-dynamic, hydraulic drive

Combination of box ways and V-guides on X and Y, plus rectangular guide way on Z

Premium components ensure maximum accuracy for continuous operation

Standard Equipment:Wheel flange,Coolant tank,Balancing arbor,Standard magnetic chuck ,Wheel exactor , Working lamp,Tool box and tools,

Wheel dresser Stand not include diamond pen,Standard grinding wheel,Foundation bolt,Leveling wedge and bolt Built in electro magnetic chuck controller,

PLC auto grinding controller only for AHD

Optional Accessories：

Wheel stand,Coolant tank with magnetic separator,Coolant tank with paper filter

Model		Unit	SG50100AHR SG50100AHD	SG50160AHR SG50160AHD	SG60120AHR SG60120AHD			SG60160AHR SG60160AHD	SG60220AHR SG60220AHD
Table size		mm	500×1000	500×1600	610×1200			610×1600	610×2200
Max grind(W x L)		mm	500×1000	500×1600	610×1200			610×1600	610×2200
Max distance from table to spindle center		mm	600
Magnetic chuck size(optional equipment)		mm	500x1000x1	500x800x2		600x1000x1		600x800x2	600x1000x2
Speed of table longitudinal movement		m/min	5-25
Wheel head cross movement	Auto feed	Mm/t	0.5-20
	Rapid speed	Mm/min	1.25
	Feed of hand wheel	Mm/div Mm/gra	0.02
Wheel head vertical movement	Auto feed	Mm/t	0.005、0.01、0.015、0.02、0.03、0.04（Only for AHD model）
	Rapid feed	mm/min	230
	Feed of hand wheel	Mm/div Mm/gra	0.002
960(14050)Wheel	Speed	Rpm	1450(50Hz)、1740（60Hz）
	Size	Mm	355x(20-50)x124
Motor of s500pindle		Kw	7.5
Max loading capacity of table		Kg	700	880		970		1230	1690
Total rated power		Kw	12				14
Height of machine		Mm	2390(include the packing base)
Floor space		Mm	4700×2550	7120×2550		4740×2750		5340×2750	6740×2750
Gross weight		kg	5500	6000		6500		7000	8000
