Feature:

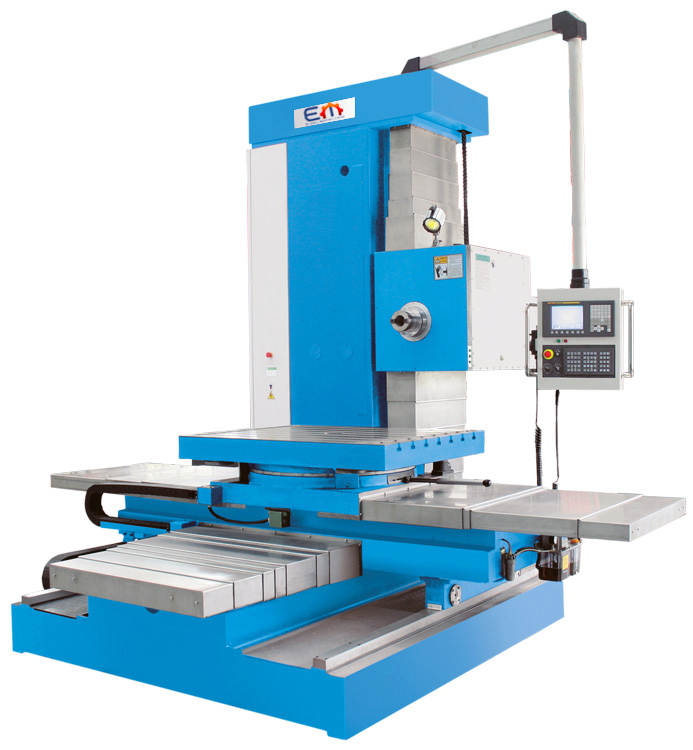

Heavy-Duty CNC Milling / Drill Unit with Fanuc 0i MD control for large and heavy parts
4-sided machining
infinitely variable spindle speed with AC servo-motor, 15 kW power and high torque
wide machine bed with 4 guideways
rigid milling table with high load capacity for part weights up to 5 tons
3-axis CNC control
rigid square guides ensure consistent work accuracy
high-quality, high-precision preloaded ball screws supported by special bearings ensure maximum positioning accuracy for all feed axes
telescoping stainless steel covers protect the guides from chips and dirt
rotary table with manual clamping can be locked at 4 positions: 0°, 90°, 180° and 270°
| BM 130 CNC – CNC Boring machine | |
| working area | |
| travel X-axis | 1500 mm |
| travel Y-axis | 1140 mm |
| travel Z-axis | 1000 mm |
| travel W-axis | 550 mm |
| table dimensions | 1000×1350 mm |
| table load capacity | 5000 kg |
| number of T-slots | 7 Pieces |
| T-slots, width | 22 mm |
| T-slots, spacing | 125 mm |
| Spindle center-to-table distance | 0 – 1140 mm |
| cutting capacity | |
| drilling capacity | 50 mm |
| counter-boring capacity | 250 mm |
| headstock | |
| spindle speed | 12 – 1000 rpm |
| spindle diameter | 130 mm |
| headstock torque | 1330 Nm |
| spindle mount | BT 50 |
| feed | |
| max. torque feed motor (X,Z) | 22 Nm |
| max. torque feed motor (Y,W) | 30 Nm |
| rapid feed X-axis | 10000 mm/min |
| rapid feed Y-axis | 10000 mm/min |
| rapid feed Z-axis | 5000 mm/min |
| rapid feed W-axis | 10000 mm/min |
| feed speed X-axis | 5 – 2000 mm/min |
| feed speed Y-axis | 5 – 2000 mm/min |
| feed speed Z-axis | 5 – 2000 mm/min |
| feed speed W-axis | 5 – 2000 mm/min |
| accuracies | |
| positioning accuracy X-axis | 0,04 mm |
| positioning accuracy Y-axis | 0,04 mm |
| positioning accuracy W-axis | 0,03 mm |
| positioning accuracy Z-axis | 0,03 mm |
| repeatability X-axis | 0,02 mm |
| repeatability Y-axis | 0,02 mm |
| repeatability Z-axis | 0,015 mm |
| repeatability W-axis | 0,015 mm |
| work table rotation accuracy | ± 10″ (4×90°) |
| work table repeatability | ± 5″ (4×90°) |
| drive capacity | |
| motor rating main drive | 22 kW |
| main drive, continuous load | 18,5 kW |
| measures and weights | |
| overall dimensions | 5010x3700x3600 mm |
| weight | 17000 kg |
,
