Feature:

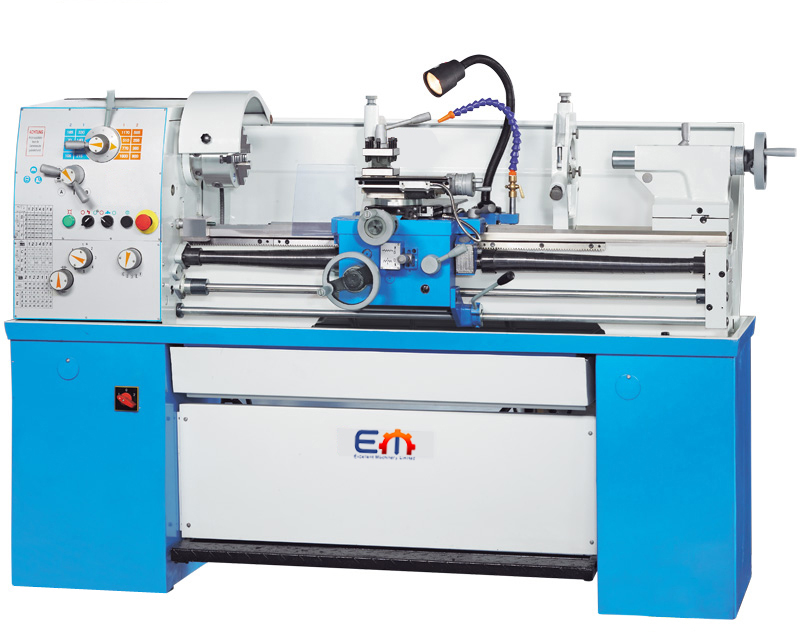

Precise tool shop lathe machine at a low price
cast-iron bed, heavily ribbed
all box ways are induction-hardened and precision-ground
headstock with D1-4′ mount, bore diam. 38 mm, run in 2 adjustable tapered roller bearings
all gears are made of Cr-Ni steel, hardened, precision-ground, with oil-bath lubrication
tailstock can be moved ± 10 mm for taper turning
powerful main drive (2.4 kW), including base frame
guides are adjustable via tapered gibs
test certificate in accordance with GB
| Basic 180 Super – Mechanics Lathe | |
| working area | |
| workpiece length (max.) | 1000 mm |
| turning diameter over bed (max.) | 356 mm |
| turning diameter over support (max.) | 220 mm |
| turning diameter over gap bridge (max.) | 506 mm |
| travel X-axis | 178 mm |
| travel Z1-axis | 92 mm |
| gap bridge length | 206 mm |
| bed width | 206 mm |
| swing range of top slide | ± 50 ° |
| headstock | |
| spindle speed | (16) 45 – 1800 rpm |
| spindle bore | 38 mm |
| spindle mount | Camlock D1-4 |
| spindle taper | MT 5 |
| feed | |
| feed X-axis | 0,015 – 0,22 mm/R |
| feed Z-axis | 0,043 – 0,653 mm/R |
| tapping | |
| tapping, metric | (37) 0,4-7 mm |
| tapping, whitworth | (28) 4-56 GPZ |
| tailstock | |
| tailstock quill diameter | 45 mm |
| tailstock taper | MT 3 |
| tailstock quill stroke | 120 mm |
| tailstock traverse adjustment | ± 10 mm / ± 0,4″ |
| drive capacity | |
| motor rating main drive | 2,4 kW |
| main drive, continuous load | 1,5 kW |
| supply voltage | 400 V |
| measures and weights | |
| overall dimensions | 1945x785x1204 mm |
| weight | 880 kg |
,
,
