very high bending accuracy
long cylinder stroke
servo-drive for rear stop with R and Z axes
C4000 light curtain by Sick for added operator safety
honed and chrome-plated hydraulic cylinder ensures maximum durability
controlled rear stop with preloaded ball screw
standard male die camber
CNC-controlled servo valves for adjustment of folding depth
repeatability 0.01 mm
diagnostics feature for electric system, hydraulics and PLC
2 linear measuring systems for upper beam positioning
programmable folding and return speeds
bending force can be calculated and programmed by CNC control
ground and hardened male and female dies
existing tools in the Multi-V die: 10.00, 16.00, 25.00, 40.00, 60.00, 90.00
fulfills highest demands with modern design and precision folding technology

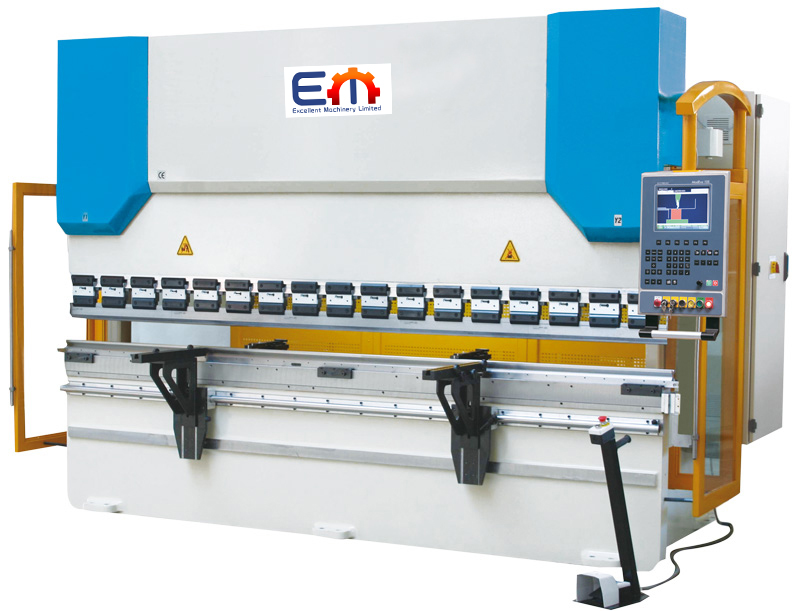

| AHK D 31160 CNC – CNC Press Brake | |
| working area | |
| pressure force | 160 t |
| brake length | 3050 mm |
| rear stop | 1000 mm |
| distance between columns | 2550 mm |
| throat | 350 mm |
| stroke length, max. | 200 mm |
| bending speed | 9 mm/s |
| rapid feed | 6000 mm/min |
| return speed | 86 mm/s |
| drive capacity | |
| motor rating main drive | 15 kW |
| measures and weights | |
| hydraulic tank volume | 150 l |
| overall dimensions | 4200x2100x2700 mm |
| weight | 9000 kg |
,
