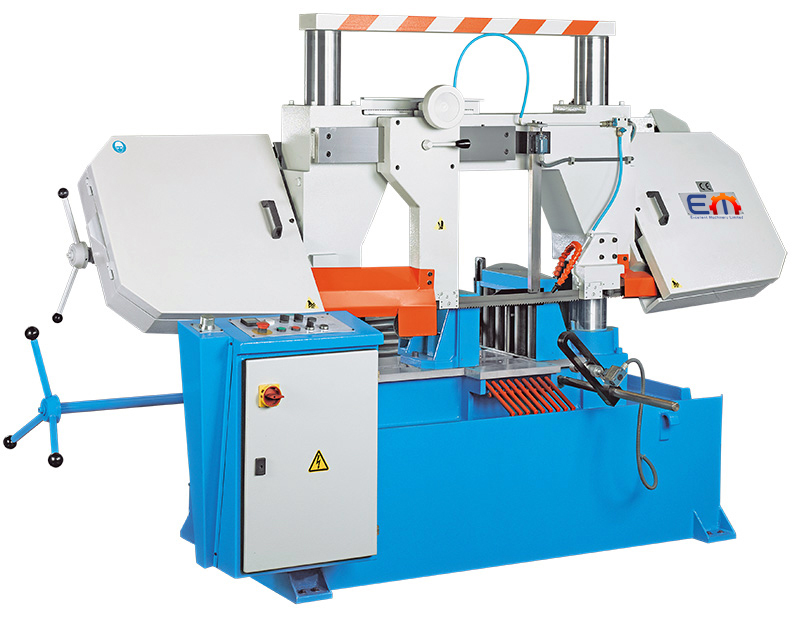

Fully automatic high-performance band saw with twin column guide system
main drive with 4 kW provides for sufficient power reserves
rigid dual-column guide for parallel cuts
torsion-resistant weldment
helical gears, designed for continuous operation with above average life time and low maintenance
parts counter
infinitely variable cutting speed from 20 to 100 mm/min for optimum cutting results
band breakage control
carbide saw-band guides
coolant system with 3 nozzles
feed roller table and linear stop are standard equipment
| ABS 550 B – Fully Automated Band Saw | |
| cutting capacities | |
| cutting capacity 90° (flat) | 570×550 mm |
| cutting capacity 90° (round) | 550 mm |
| cutting capacity 90° (square) | 550 mm |
| stop length | 500 mm |
| cutting speed | 20-100 stufenlos / infinitely variable m/min |
| working area | |
| roller guide length | 1000 mm |
| drive capacity | |
| motor rating main drive | 4 kW |
| motor rating hydraulic pump | 1,1 kW |
| motor rating feed | 0,55 kW |
| motor rating coolant pump | 0,12 kW |
| supply voltage | 400 V |
| measures and weights | |
| overall dimensions | 3350x1200x2100 mm |
| weight | 2100 kg |
,
